Epson LQ 310 Dot Matrix Printer

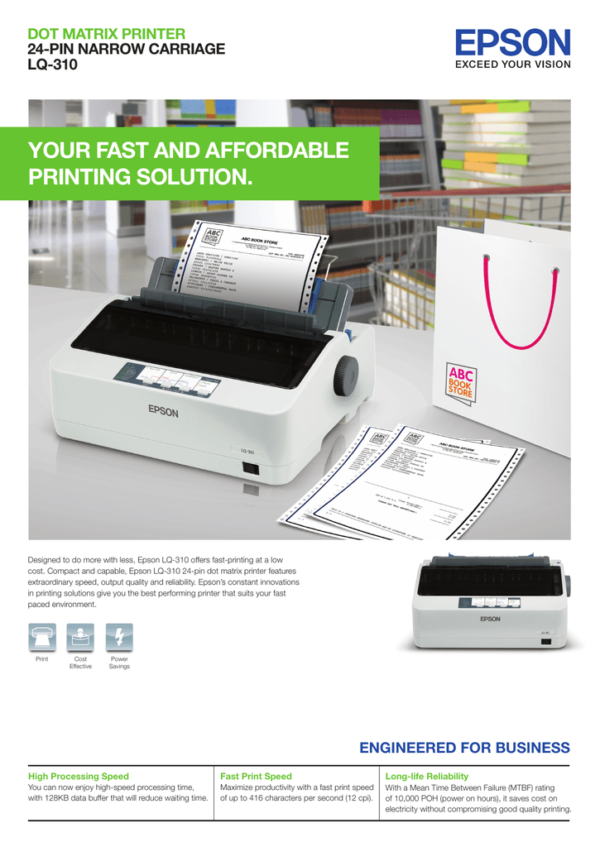

YOUR FAST AND AFFORDABLE PRINTING SOLUTION Designed to do more with less, Epson LQ-310 offers fast-printing at a low cost. Compact and capable, Epson LQ-310 24-pin dot matrix printer features extraordinary speed, output quality and reliability. Epson’s constant innovations in printing solutions give you the best performing printer that suits your fast paced environment.
WHY THE Epson LQ 310 Dot Matrix Printer?
Building on its reputation as the worlds top dot matrix printer maker, Epson has introduced the
Epson LQ-310 as the next-generation narrow carriage, 24-pin model that replaces the legendary LQ-300,
featuring vastly improved speed and reliability.
Extreme Speed
The Epson LQ-310 features a 128KB input data buffer memory that is double that of its predecessor.
This enables it to achieve high printing speeds of up to 416 characters per second at 12 CPI
or almost 40% faster than the model it replaces.
Improving on Legendary Reliability
The Epson LQ-310 also has an improved reliability rating that is an astonishing 67% higher than its
predecessor that was already renowned for its dependability. The LQ-310 is rated for a mean time before
failure (MTBF) of 10,000 POH (power on hours) compared to the older models 6,000 POH.
High Impact for Multiple Carbon Copies
Achieve optimum efficiency with the LQ-310s ability to create up to a 4-part form printout
(1 original + 3 copies).
Flexible Connectivity
With built-in USB, Serial and Parallel Interface options, the LQ-310 is able to connect to just
about any output device you need it for.
TECH SPECS
| MODEL NUMBER | LQ-310 |
| Epson LQ 310 Dot Matrix Printer Printing Technology | |
| Print Method | Impact dot matrix |
| Number of Pins in Head | 24 pins |
| Print Direction | Bi-direction with logic seeking |
| Control Code | ESC/P2 and IBM PPDS emulation |
| Epson LQ 310 Dot Matrix Printer Print Speed | |
| High Speed Draft10/12 cpi | 347 / 416 cps |
| Draft10/12/15 cpi | 260 / 312 / 390 cps |
| Draft Condensed17/20 cpi | 222 / 260 cps |
| LQ10/12/15 cpi | 86 / 103 / 129 cps |
| LQ Condensed17/20 cpi | 147 / 172 cps |
| Print Characteristics | |
| Epson LQ 310 Dot Matrix Printer Character Sets | Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
| Bitmap Fonts | Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational |
| Barcode Fonts | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet |
| Printable Columns | |
| Pitch10/12/15/17/20 cpi | 80 / 96 / 120 / 137 / 160 cpl |
| Paper Handling | |
| Paper Path | |
| Tractor | Rear in, Top out |
| Manual Insertion | Rear in, Top out |
| Paper Size | LengthWidthThickness |
| Cut Sheet (Single Sheet) | 100 – 364mm (3.9 – 14.3″)100 – 257mm (3.9 – 10.1″)0.065 – 0.14mm (0.0025 – 0.0055″) |
| Cut Sheet (Multi Part) | 100 – 364mm (3.9 – 14.3″)100 – 257mm (3.9 – 10.1″)0.12 – 0.32mm (0.0047 – 0.0126″) |
| Envelope (No.6) | 92mm (3.6″)165mm (6.5″)0.16 – 0.52mm (0.0063 – 0.0205″) |
| Envelope (No.10) | 105mm (4.1″)241mm (9.5″)0.16 – 0.52mm (0.0063 – 0.0205″) |
| Continuous Paper (Single Sheet an Multi part) | 101.6 – 558.8mm (4.0 – 22.0″)101.6 – 254.0mm (4.0 – 10.0″)0.065 – 0.32mm (0.0025 – 0.0126″) |
| Roll Paper | NA216mm (8.5″)0.07 – 0.09mm (0.0028 – 0.0035″) |
| Paper Feeding | |
| Standard | Friction, Push Tractor |
| Optional | Roll Paper Holder |
| Copies | Original + 3 copies |
| Line Spacing | 4.23mm (1/6″) or programmable in increments of 0.118mm (1/216″) |
| Input Data Buffer | 128KB |
| Interface | |
| Standard | Bi-directional parallel interface (IEEE-1284 nibble mode supported) USB 2.0 Full-Speed Serial |
| Epson LQ 310 Dot Matrix Printer Ribbon Cartridge | |
| Standard | Fabric Ribbon Cartridge (Black) |
| Ribbon Life | Approx. 2.5 million characters (Draft 10cpi, 48 dots/character) |
| Acoustic Noise | Approx. 53dB(A) (ISO 7779 pattern) |
| Reliability | |
| Mean Print Volume Between Failure (MVBF) | Approx. 20 million lines (Except print head) |
| Mean Time Between Failure (MTBF) | Approx. 10,000 POH (25% Duty) |
| Print Head Life | Approx. 400 million strokes/wire |
| Control Panel | 4 switches and 5 LEDs |
| Environmental Conditions (Operating) | |
| Temperature | 5 ~ 35°C |
| Humidty | 10 ~ 80% RH |
| Electrical Specification | |
| Rated Voltage | AC 120V / AC 220 – 240V |
| Rated Frequency | 50Hz – 60Hz |
| Power Consumption | |
| Operating | Approx. 22W (ISO/IEC 10561 Letter pattern),(ENERGY STAR compliant) |
| Sleep Mode | Approx. 1.0W (120V) / 1.3W (230V) |
| Auto Off Mode | Approx. 0.5W |
| Power Off | 0W |
| Epson LQ 310 Dot Matrix Printer Driver / Utility | |
| Operating System | Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
| Utility | |
| Epson Status Monitor 3 | Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
| Epson Printer Setting | Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
| Functions | |
| Technology | Method: Impact dot matrix |
| Number of Pins | Epson LQ 310 Dot Matrix Printer 24 pins |
| Epson LQ-310 Dot Matrix Printer Speed |
Print:10/12 cpi, 347/416 cps, Draft: 10/12/15 cpi 260/312/390 cps, Condensed: 17/20cpi 222/260 cps |
| MTBF | Approx. 10,000 POH (25% Duty) |
| Print Head Life | Approx. 400 million strokes/wire |
| Character Sets | Italic table, PC437(US Standard Europe), PC850 (Multilingual), PC860, (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
| Epson LQ 310 Dot Matrix Printer Supported Bitmap Fonts | Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proportional |
| Supported Scalable Fonts | Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. – 32pt. (every 2pt.) |
| Barcode Sets | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet |
| Envelopes Media | No.6 : Length-92 mm, Width-165 mm Thickness-0.16 ~ 0.52 mm, No.10 : Length-105 mm, Width-241 mm Thickness-0.16 ~ 0.52 mm |
| Continuous Paper | Paper Path: Tractor & Manual Inseration: Rear in, Top out |
| Roll Media Handling | 216mmx0.07-0.09mm, Roll Paper Holder |
| Multipart Copy | Original + 3 copies |
| Print Direction | Bi-direction with logic seeking, Tractor: Rear in, Top Out, Manual Insertation: Rear in, Top Out. |
| Emulation | ESC/P2 and IBM PPDS emulation |
| Memory | Data Buffer: 128KB |
| Supported Consumables | Ribbon Cartridge Black: 2.5 million characters – S015634 |
| Interface | Bi-directional parallel interface (IEEE-1284 nibble mode supported), USB 2.0 Full-Speed, Serial |
| Control Panel | Display: 4 switches and 5 LEDs |
| Voltage | AC 120V / AC 220 – 240V |
| Rated Frequency | 50Hz ~ 60Hz |
| Power Consumption | Opearting: Approx. 22W (ISO/IEC 10561 Letter pattern), (ENERGY STAR compliant), Sleep Mode: Approx. 1.0 W (120V) / 1.3 W (230V), Auto Off Mode: Approx. 0.5W, power Off: 0W |
| OS Compatibility | Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
| Environment | Temperature: 5 ~ 35°C, Humidity: 10 ~ 80 % RH |
| Dimension | 362 x 275 x 154 mm |
| Epson LQ 310 Dot Matrix Printer Weight | 4.1kg |
