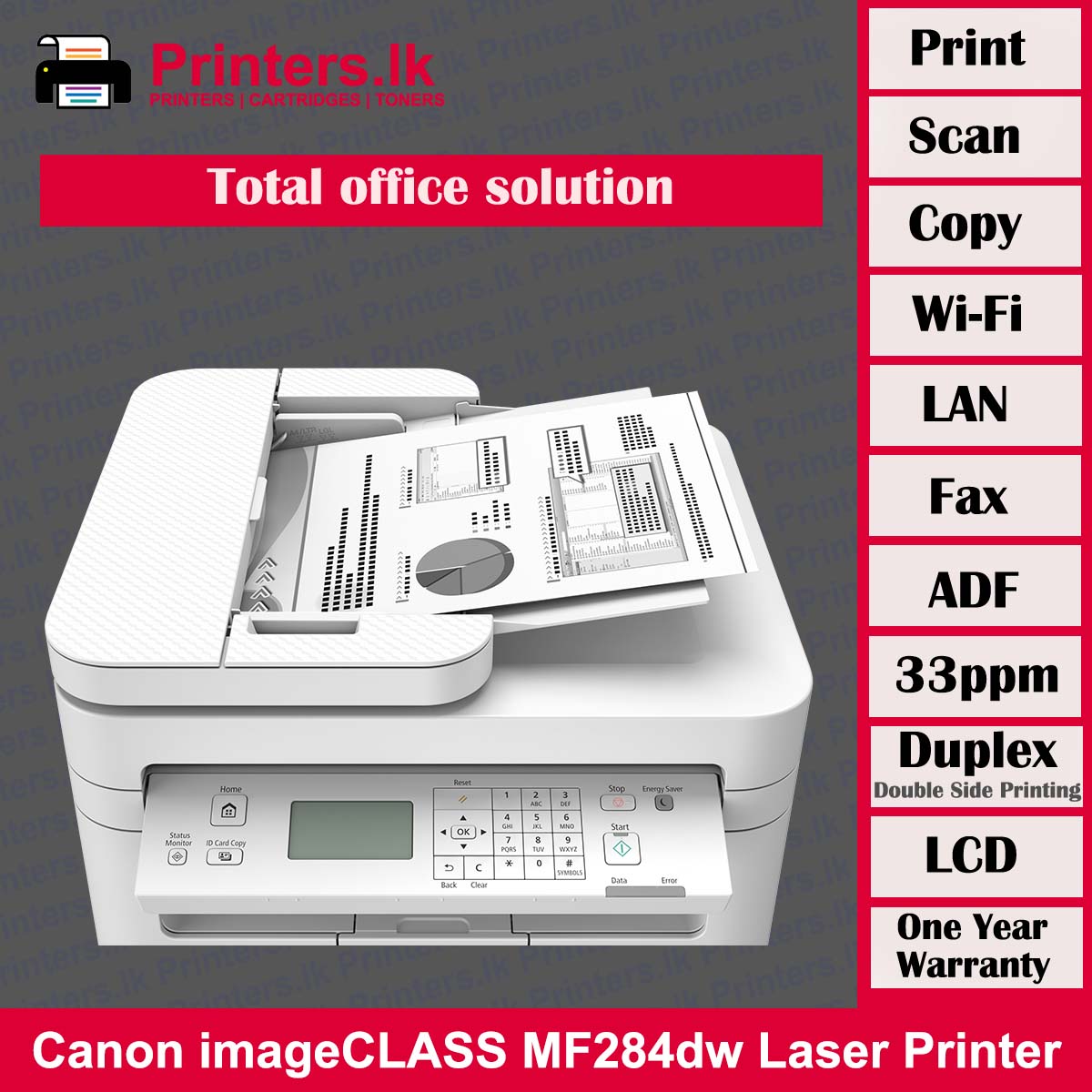

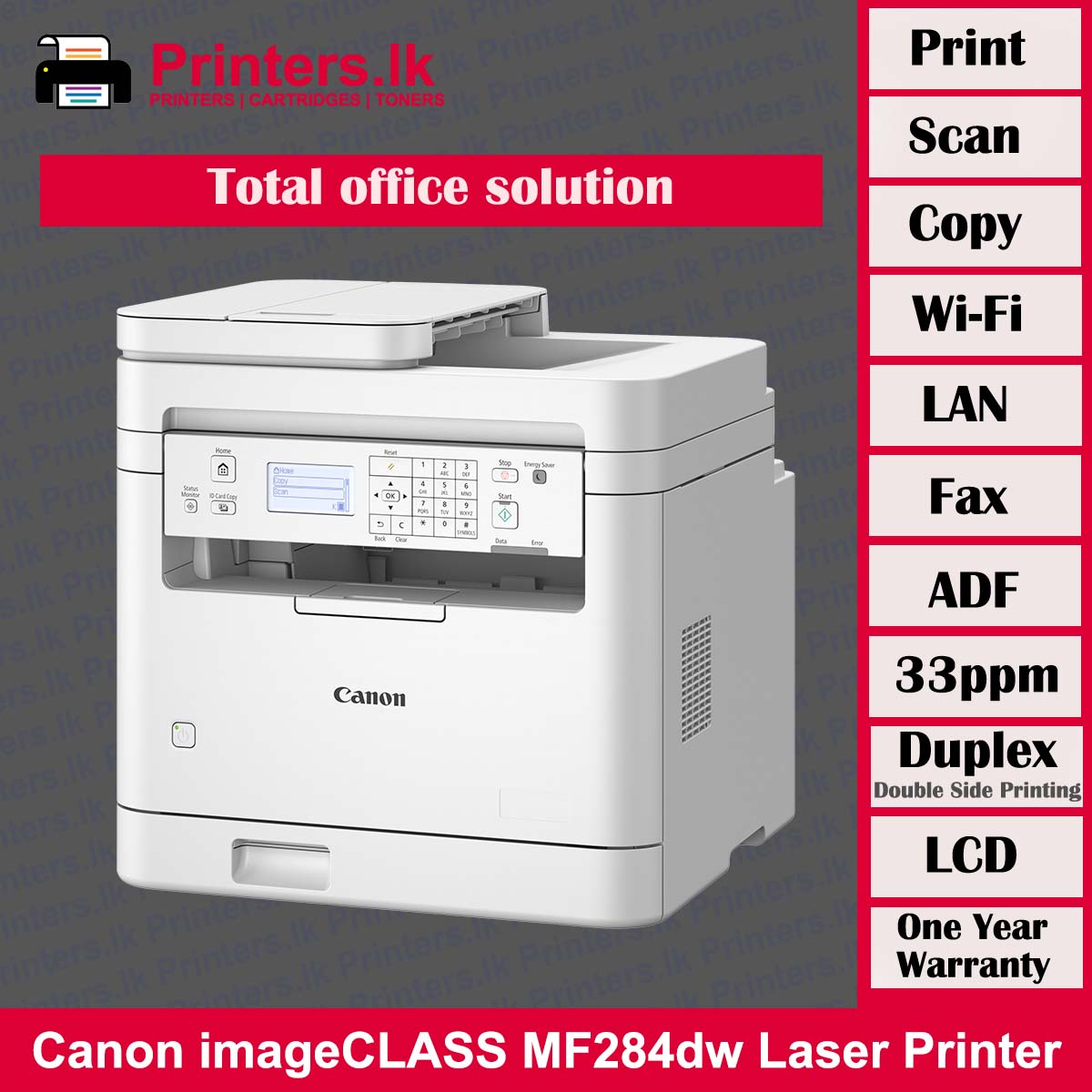

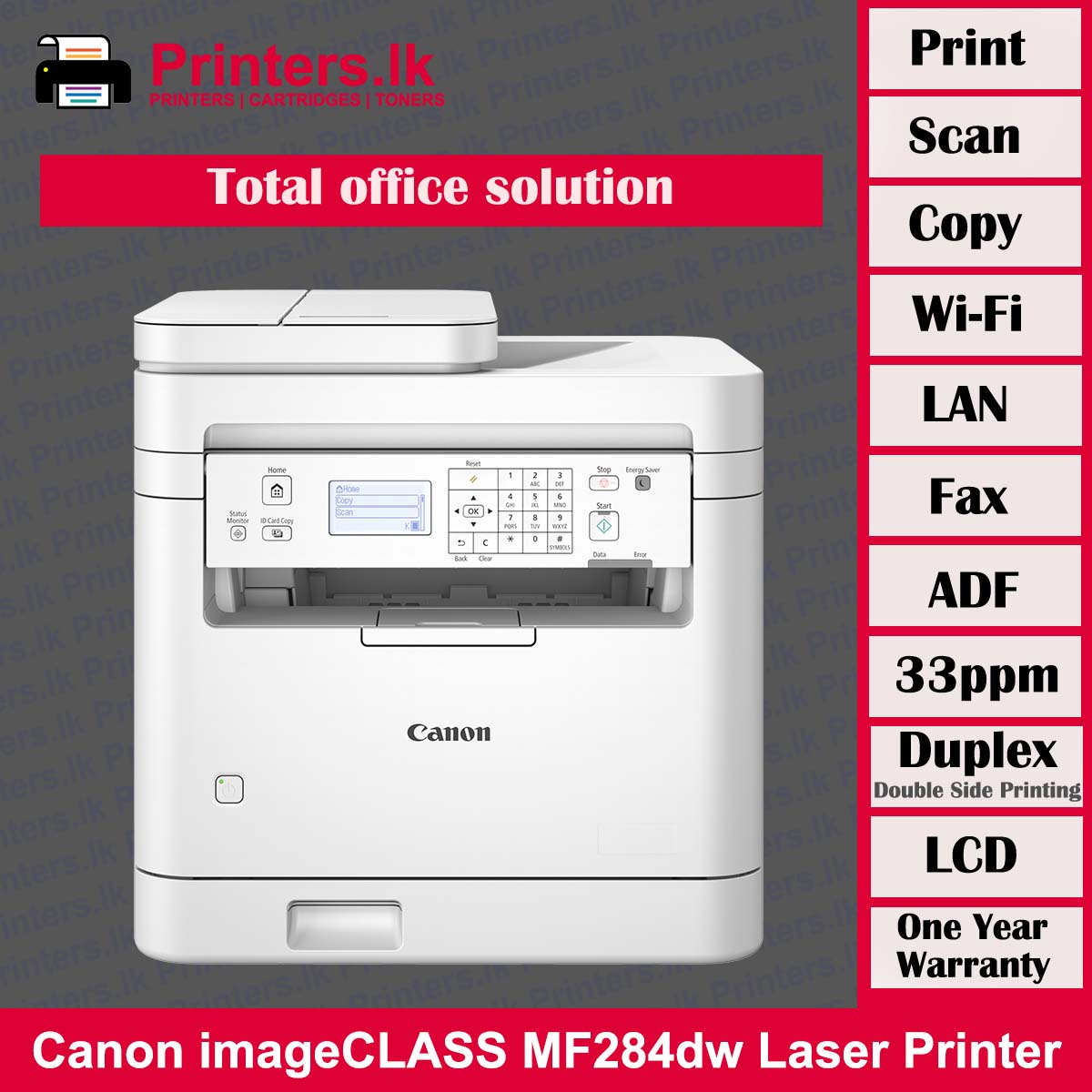

Canon imageCLASS MF284dw Laser Printer
Wireless 4-in-1 Monochrome Multifunction for Home and Small Offices
Enhance efficiency at home or in small offices with an easy wireless setup on our 4-in-1 multifunction laser printer. Boost your productivity with auto document feeder and experience seamless navigation using the intuitive LCD touchscreen panel.
- Print, Scan, Copy, Fax
- Print Speed (A4): Up to 33 ppm
- First Print Out Time (A4): Approx. 5.4 sec
- Print resolution: Up to 2,400 (equivalent) x 600 dpi
- Recommended Monthly Print Volume: 150 – 2,000 pages
Features
| Printing Method | Monochrome Laser Beam Printing |
| Print Speed | |
| A4*1 | 33 ppm |
| Letter*1 | 35 ppm |
| 2-Sided, A4 | 20.9 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 15 sec or less |
| First Print Out Time (FPOT*2) (Approx.) | |
| A4 | 5.0 sec |
| Recovery Time (From Sleep Mode) | 3.2 sec or less |
| Print Language | UFR II, PCL 6 |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right margin: 5 mm Top/Bottom/Left/Right margin: 10 mm (Envelope) |
Copy
| Copy Speed | |
| A4 | 33 ppm |
| Copy Resolution | 300 x 600 dpi 600 x 600 dpi |
| First Copy Time, A4 (Approx.) | |
| Platen Glass | 7.3 sec |
| Auto Document Feeder | 8.6 sec |
| Maximum Number of Copies | Up to 999 copies |
| Reduce/Enlargement | 25 – 400% in 1% increments |
| Copy Features | Collate, 2-on-1, 4-on-1, ID Card Copy, Passport Copy |
Scan
| Scan Resolution | |
| Optical | Up to 600 x 600 dpi |
| Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size | |
| Platen Glass | Up to 215.9 x 297 mm |
| Feeder | Up to 215.9 x 355.6 mm |
| Scan Speed*3 | |
| Platen Glass | 2.7 sec (mono), 3.5 sec (colour) |
| Feeder | 20 ipm (mono), 15 ipm (colour) |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
Paper Handling
| Input Tray Capacity (Plain Paper, 80 g/m2) |
|
| Cassette | 250 sheets |
| Auto Document Feeder | 35 sheets |
| Output Tray Capacity (Plain Paper, 75 g/m2) | 100 sheets |
| Media Size | |
| Cassette | A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76 x 127 mm to max. 216 x 356 mm)Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Auto Document Feeder (ADF) | A4, B5, A5, B6, Letter, Legal (min. 148 x 105 mm to max. 216 x 356 mm) |
| 2-Sided Printing | A4, Legal, Letter, Foolscap, Indian Legal Custom (min. 210 x 279 mm to max. 215 x 356 mm) |
| Media Type | Plain Paper, Recycled Paper, Label, Postcard, Envelope |
| Media Weight | |
| Cassette | 60 – 163 g/m2 |
| 2-Sided Printing | 60 – 105 g/m2 |
| Auto Document Feeder | 50 – 105 g/m2 |
Connectivity & Software
| Standard Interfaces | |
| Wired | USB 2.0, 10Base-T/100Base-TX |
| Wireless | IEEE 802.11b/g/n (Infrastructure Mode, WPS, Access Point Mode) |
| Network Protocol | |
| TCP/IP (LPD, RAW, IPP, IPPS, WSD) | |
| TCP/IP Application Services | Bonjour (mDNS), DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Management | SNMP v1/v3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security | |
| Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE 802.1X, TLS 1.3 |
| Wireless | Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES), IEEE 802.1X Access Point Mode: WPA2-PSK (AES) |
| Mobile Solution | Canon PRINT, Canon Print Service, AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Compatible Operating Systems*4 | Windows 10/11, Windows Server 2016/2019/2022, macOS 10.14 or later, Linux, Chrome OS |
| Available Software | Printer Driver, Scanner Driver, MF Scan Utility, Toner Status |
General
| Device Memory | 256 MB |
| Display | 5-Line LCD |
| Power Requirements | AC 220 – 240 V, 50/60 Hz |
| Power Consumption*5 (Approx.) | |
| Operation | 410 W (max. 1,020 W) |
| Standby | 3.9 W |
| Sleep | 0.6 W |
| Operating Environment | |
| Temperature | 10 – 30°C |
| Humidity | 20% – 80% RH (no condensation) |
| Monthly Duty Cycle*6 | 50,000 pages |
| Dimensions (W x D x H) (Approx.) | 390 x 399 x 394 mm |
| Weight*7 (Approx.) | 12.5 kg |
| Toner Cartridge*8 | |
| Standard | Cartridge 072: 1,400 pages (bundled: 1,000 pages) |
| High | Cartridge 072H: 4,100 pages |
- Print speed is measured based on internal testing using A4/LTR size paper printed with 100% print ratio to original on one-sided paper. Internal testing involved continuously printing the same one page of content on plain paper.
Print speed may vary depending on paper type, paper size or paper feeding direction. - First print out time is measured based on internal test procedure and may vary. When the printer is in the ready state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing paper ejection.
- Scan resolution 300 x 300 dpi.
- The latest drivers for Windows, Windows Server, Mac OS and Linux can be downloaded from the https://asia.canon/en/support website when available.
- Power consumption is based on internal test procedure and may vary.
- Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser printer devices, and does not refer to actual maximum image output per month.
- Excluding toner cartridge.
- Toner cartridge yield is in accordance with ISO/IEC 19752.
