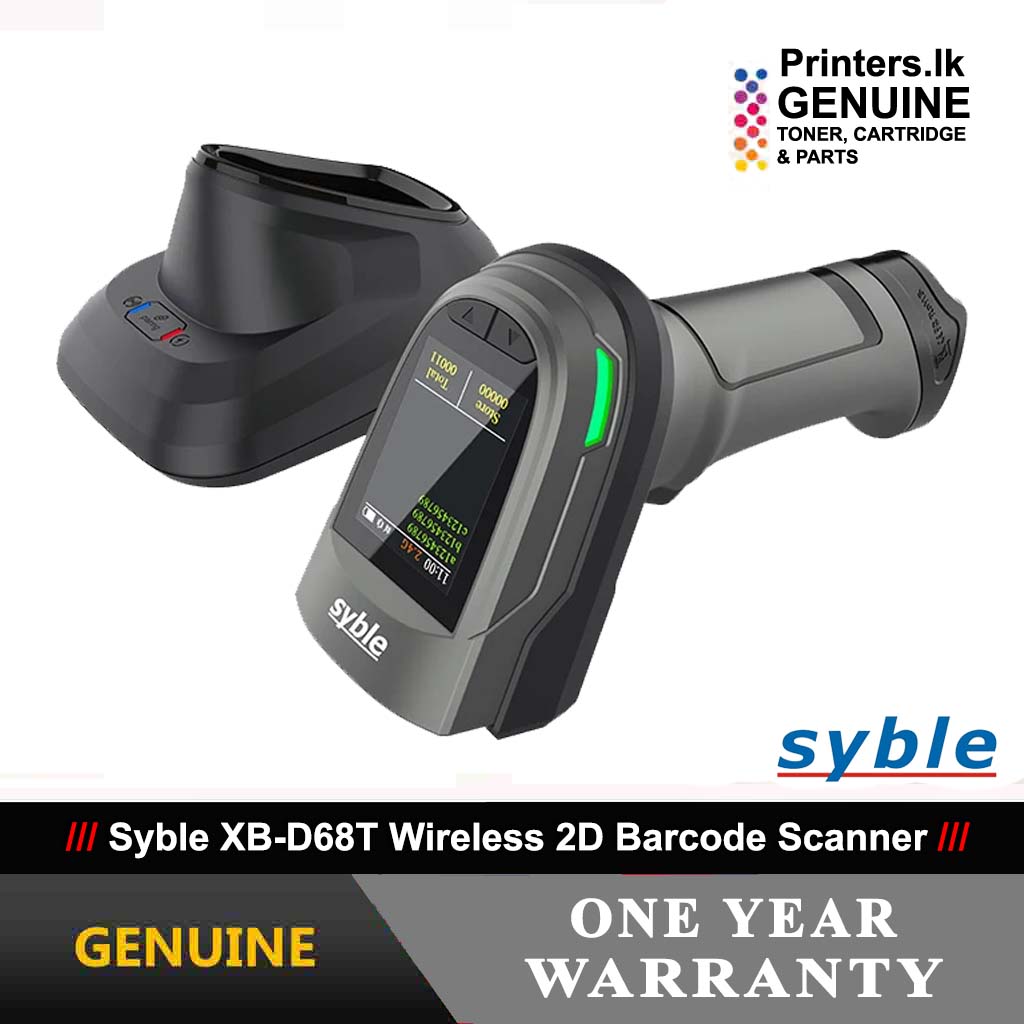

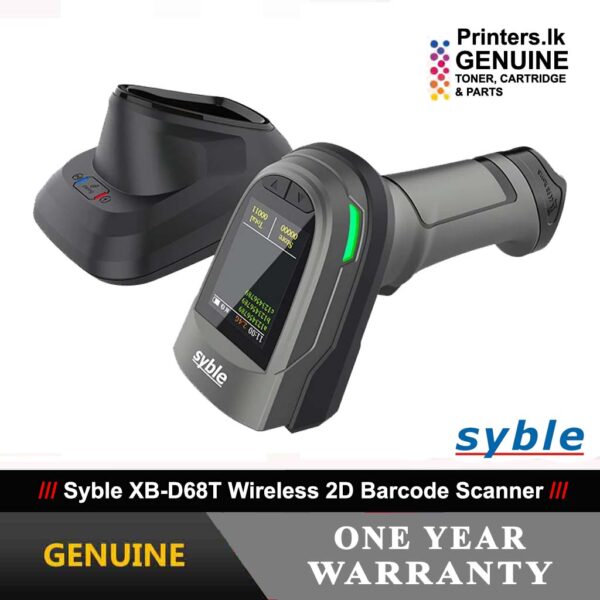

Syble XB-D68T Wireless 2D Handheld Barcode Scanner
XB-D68T is Syble innovating 2D Industrial 2.4G Bluetooth barcode scanner equipped with multifuntional charging base which has the one-click pairing function, no need to rely on setting codes. Strong recognition of folding code, stain code, vacuum packaging bar code etc. The design highlights that it has the display screen can view barcode data, power, time and other functions in real time.
Product Feature

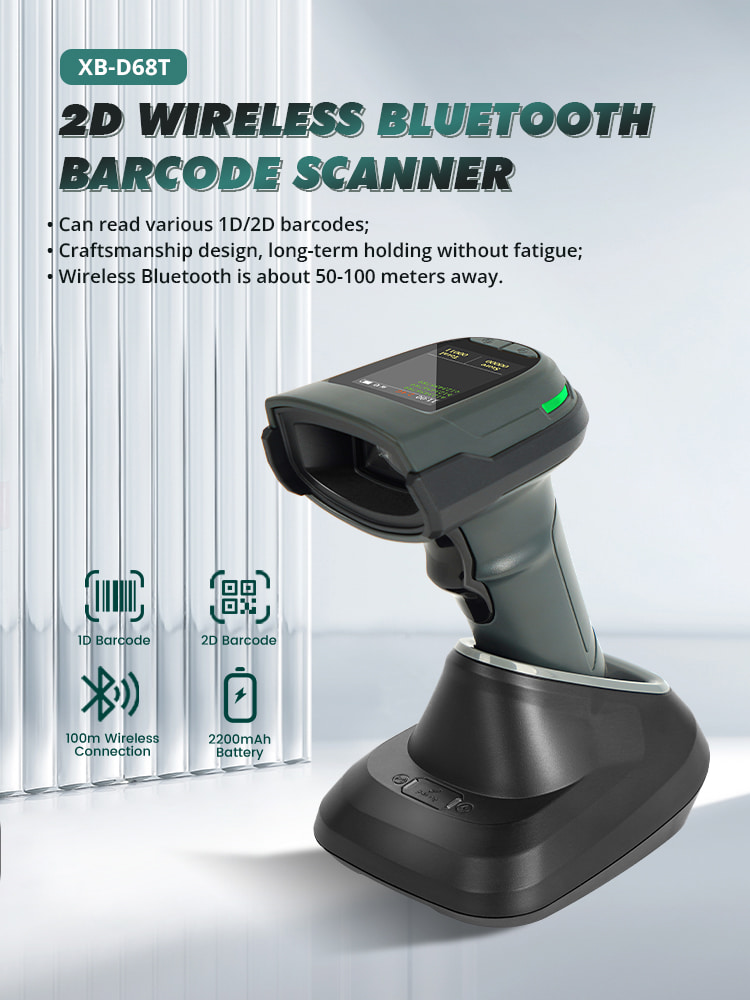

- Can read various1D/2D codes.
- Craftsmanship design, long-term holding without fatigue.
- Wireless Bluetooth is about 50-100 meters away.

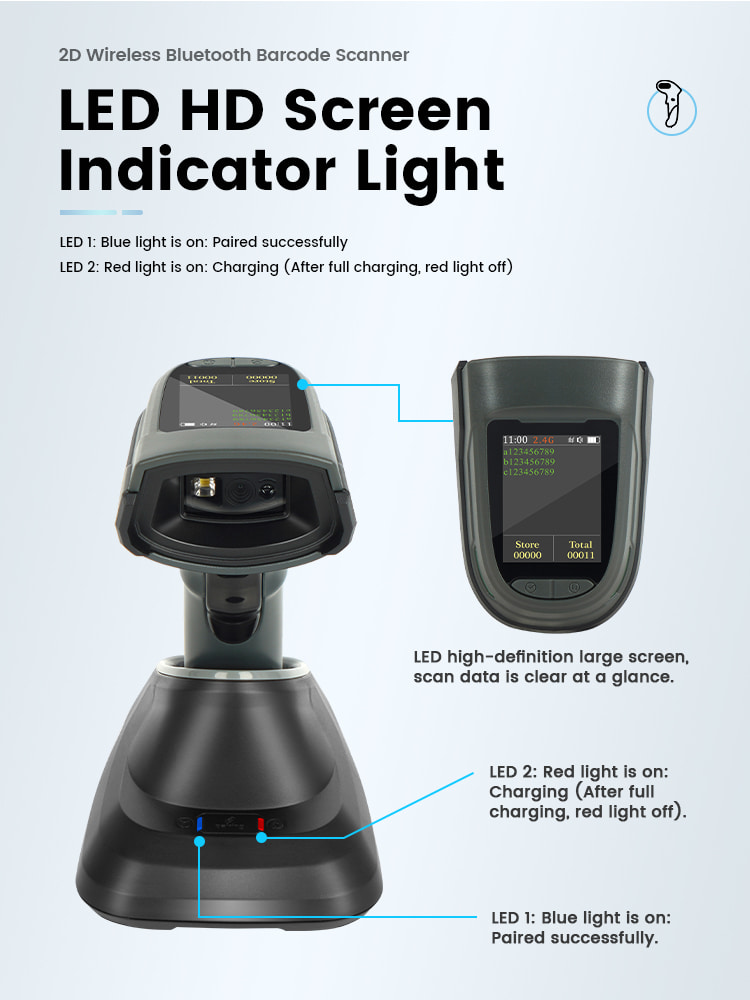

- The screen can view barcode data, power; time and other functions in real time.
- Can be paired directly with mobile phones, tablets and laptops with Bluetooth function.
| Specification | |
| Performance Parameters | |
| Light Sources: | White lighting, red aiming light |
| Supported Symbologies | 1D: Codabar、Code39、Code32Pharmaceutical (PARAF).> Interleaved 2 of 5、 NEC 2 of 5、Code 93、Straight 2 of 51ndlistial、Straight 2 of 5 IATA、 Matrix 2 of 5. Code HCodel28s GS1-128、UPC-A、UPC-E、EAN/JAN-8. EAN/JAN-13、MSI、GS1 DataBar Omnidirectional GS1 DataBarLimited% GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.
2D: Codeblock As Codeblock F% PDF417、Micro PDF417S GS1 Composite Codes、QRCode、Data Matrixs MaxiCode、Aztec、HANXIN. |
| Scanning Principle: | Image CMOS |
| Scan Mode: | Manual/Continuous/Automatic Scintillation |
| Image (Pixels) | 640pixels (H) x 480 pixels (V) |
| Scan Angle: | Yaw±65°, Rotation 360°,Pitch±65° |
| Print Contrast: | 20% |
| Depth of scan field: | Code39(5mil): 7-16cm, Code39(13mil): 7-32cm
QR code (15mil): 3-18cm, Code128(20mil): 6-35cm |
| Error Rate: | 1/5million |
| Interface: | Receiver: USB-HID, Bluetooth: HID, BLE |
| Transmission distance: | 50-100M(Open Yard) |
| Communication mode: | Paired dedicated receiver: 2.4G
Paired mobile Bluetooth devices: Dual-mode Bluetooth |
| Screen function: | 1. View barcode data in real time; 2.View stored data in real time;
3. View battery power in real time; 4. Real time time display; 5. Scan code gun can be set through the screen |
| Storage mode: | Offline storage mode: The scanner automatically stores data when it leaves the connection range.
Inventory storage mode: The scanner can enter inventory mode. |
| Pairing Mode: | One to One: One Scanning Gun Pairs One Receiver, One scanner paired with a Bluetooth mobile device. |
| Receiver: | Dedicated Bluetooth U disk receiver, Android/IOS mobile device |
| Physical Parameters | |
| Dimensions | 174.8mm * 65.7m m*83.5mm |
| Material | ABS+PC |
| Screen size: | 40.8*30.6mm |
| Cable Length | 1 M |
| Environmental Parameters | |
| Operating Temperature | -20℃ ~50℃ |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 5%~95% RH（Non-condensing） |
| Ambient lighting | 0~100000LUX |
| Drop/Shock Resistance: | Withstands multiple times 1.5 meters drops to concrete |
| Electronic Parameters | |
| Working Voltage | DC5V±5% |
| Operating Current | When working without scanning codes >35mA;
When scanning code at work >300mA. |
| Standby Current | OmA(Standby is to cut off battery power) |

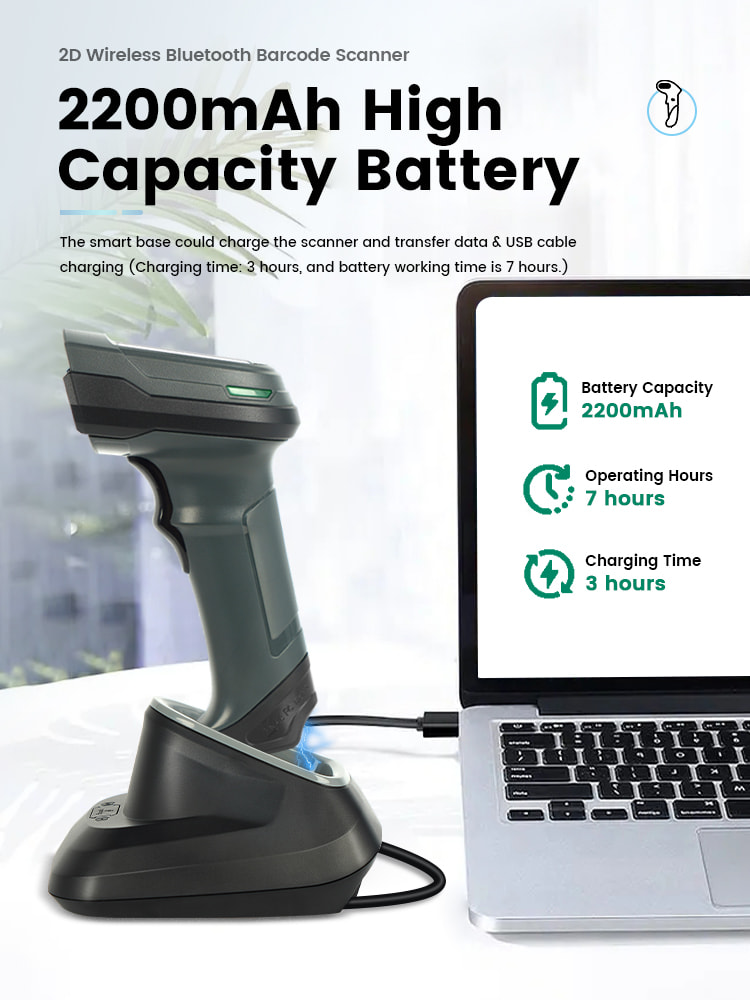

| Battery Working Time: | 7H |
| Lithium battery: | 2200mA |
| Continuous working hours: | Continuous scanning, working time is 6 hours |
| Charging Time: | 3H |
| Charging Mode: | Type C charging cable, plug in and charge directly |
