Xprinter 80mm Thermal Printer
Model: XP-80mm
Print width: 72mm (adjustable by commands)
Column Capacity : 576 dots / line or 512 dots / line
Interface: USB
Printing paper: 79.5 ± 0.5mm
Overview:

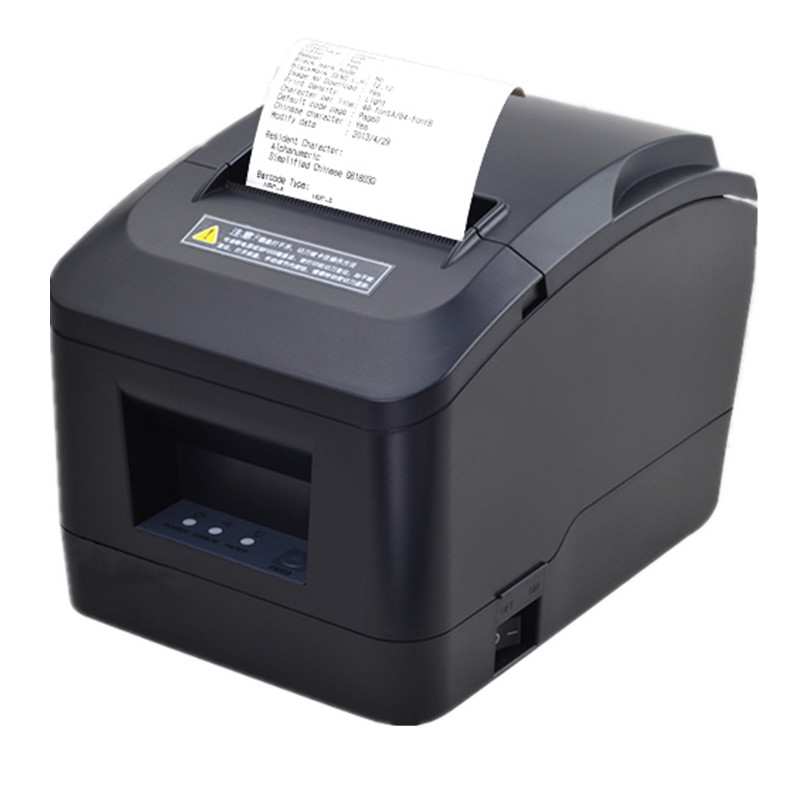

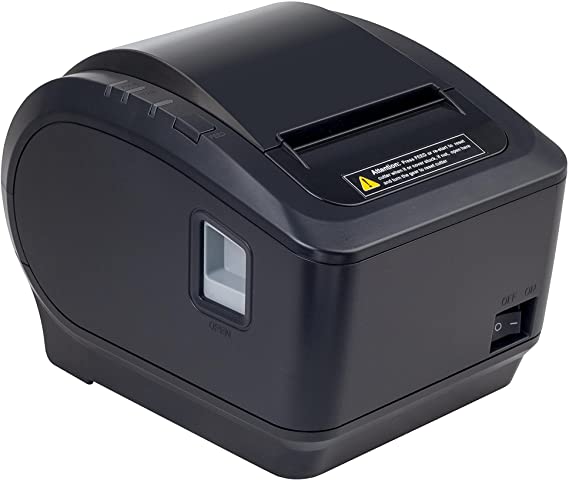

X-Printer XP-K200L Temperature Receipt Printer with USB port.
Designed by X-Printers, the XP-K200L features a modern style and a modern look. The XP-K200L is equipped with a solid frame to protect the machine body for better performance.
Equips printer X K200L with printer monitoring function, monitors printer operation. The print head helps control temperature, prevents overheating and fire.
A large paper bag holds up to 80 mm of paper rolls.
Application:
Super market
Restaurant
Cinema
Garage, transportation
Hospitals, clinics
Specification:
| Model | XP-K80mm |
| Print width | 72mm (adjustable by commands) |
| Column Capacity | 576 dots / line or 512 dots / line |
| Printing speed | 200mm / s |
| Interface | USB |
| Printing paper | 79.5 ± 0.5mm |
| Line spacing | 3.75mm (Adjustable by commands) |
| Weight | 2 Kg |
| Dimensions (D × W × H) | 195 × 140 × 138 mm |
| Printing method | Direct thermal printing |
| Print width | Paper width 72mm |
| Point density | 576 points / line or 512 points / line |
| Print speed | 200 mm / sec |
| Connector | USB + LAN |
| Printing paper | 79.5 ± 0.5 mm × 80 mm |
| Line spacing | 3.75 mm (line spacing can be adjusted by command) |
| Some columns | 80mm paper: 80mm paper: Font A – 42 columns or 48 columns / Font B – 56 columns or 64 columns / simple, traditional – 21 columns or 24 columns |
| Character size | ANK character, Font A: 1.5 × 3.0mm (12 × 24 dots) |
| Font B: 1.1 × 2.1mm (9 × 17 dots) | |
| Jane / Traditional: 3.0 × 3.0mm (24 × 24 dots) | |
| Extended font | PC347 (Standard Europe), Katakana, |
| PC850 (Multilingual), PC860 (Portugal), | |
| PC863 (Canada-France), PC865 (Nordic), | |
| Western Europe, Greece, Israel, Eastern Europe, Iran, WPC1252, PC866 (Cyrillic # 2), PC852 (Latin2), PC858, IranII, Latvia, Arab, PT151 (1251) | |
| Barcode type | UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / |
| CODE39 / ITF / CODABAR / CODE93 / CODE128 | |
| Input buffer | 64k bytes |
| NV flash memory | 256k bytes |
| Power adapter | Input: AC 110V / 220V, 50 ~ 60Hz |
| Power supply | Output: DC 24V / 2.5A |
| Cash drawer | DC 24 V / 1A |
| Weight | 2 kg |
| Pack | 195 × 140 × 138mm (DxWxH) |
| Work environment | Temperature: 0 ～ 45 ° C, Humidity: 10 ～ 80% |
| Storage environment | Temperature: -10 60 ° C, Humidity: 10 ～ 90% (no condensation) |
| Cutter | 1.5 million times |
| Print plug | 150 km |
