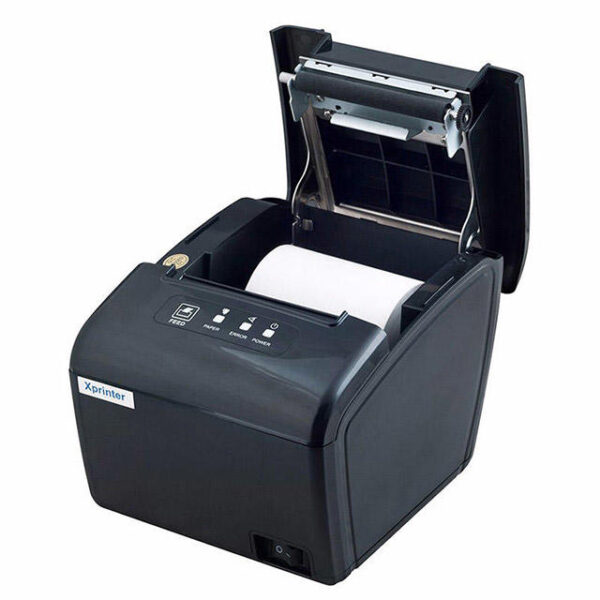

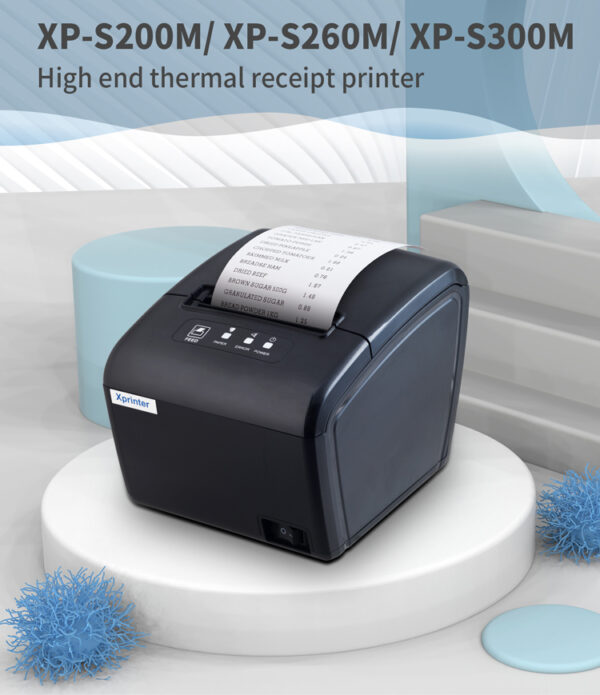

80mm Thermal Printer Auto Cutter
- 3-inch thermal receipt printer, comes with USB+LAN+Serial Port interfaces to meet different demands.
- High resolution with fast printing speed–300mm/s, auto-cutter makes your work more efficient.
- Strong applicability and can be widely used in large shopping malls, supermarkets, restaurants, retail, etc.
- Support all Windows / Linux systems based on ESC / POS command.
- One-button opening design, easy to load the paper.
Note:
This printer DOES NOT support Mac, Ipad, iPhone, Android, Chrome OS devices…Do not compatible with Uber eats, Square, etc.
DO NOT support Wifi, Bluetooth.
If you have any compatibility issues with our printers or the software you are using, please let us know.
Product Description
- Print Method: Direct thermal
- Printing Speed: 300mm/s
- Auto Cutter: Partial
- Resolution: 576 dots / line
- Printing Width: 72mm
- Paper Diameter: 79.5±0.5mm×φ80mm
- Interface: USB + LAN + RS232
- Input: AC100V-240V 50/60HZ
- Output: DC 24V/2.5A
- Reliability print: 100km
80mm Thermal Receipt Printer Auto cutter Restaurant Kitchen POS Printer
Paper printing that supports these sizes
Paper: 48mm/52mm/56mm/64mm/68mm/76mm/80mm
Printing
Print Method Direct Thermal
Print Speed 260m/s
Resolution 640dots/line
Printing Width 80mm(max)/72mm(default)
Paper separator(option) 48mm/52mm/56mm/64mm/68mm/76mm/80mm
Memory
Input buffer 256kbytes
NV Flash 256kbytes
Fonts
Font A 12×24
Font B 9×17
Chinese GB18030,BIG5 24x24dots
Japanese/Korea Support
User-defined Support
Barcode
1D UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/
CODABAR/CODE93/CODE128
2D QR Code
Detection
Sensors Paper out, cover open, cutter jam,paper jam and black
mark detection(Optional)
Power Supply
Input AC 100V-240V 50/60HZ
Output DC 24V/2.5A
Paper
Paper Type Thermal Receipt Paper
Paper Width 48mm/52mm/56mm/64mm/68mm/76mm/80mm
Paper Thickness 0.06~0.08mm
Roll Dia Max. Ø 83 mm
Paper Load Easy paper loading
Paper Cut Manual tear or Auto-cutter
Physical Charateristics
Working Condition 0°C~45°C, 10%~80%RH
Storage Condition -10°C-60°C,10%~90%RH
Dimensions 184(D)x143(W)x148(H)mm
Net weight 2.25kg Gross weight 2.4kg
Reliability
Printing head 150KM
Cutter 1.5million
Accessories
data cable,power adaptor,power code,paper roller,CD,manual,
paper separator(option)
OS
Emulation ESC/POS
Driver Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/
OPOS/JPOS
